Adapter panels and splice trays NOT included
This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3401STP36 Splice Trays. To find out more, give us a call or email us.
Description

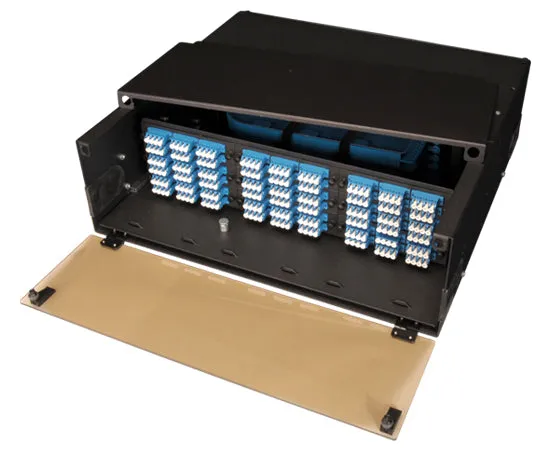

Fiber Patch and Splice Panel, High Density, Slide-Out, 3RU, Holds 9 Adapter Panels and 6 Splice Trays, Up to 216 Splices, Black
This rack mount fiber patch panel is a 3 Rack Unit (3RU) high density distribution unit that provides high density fiber capacity of up to 216 fibers when utilizing 9 of the LC Quad adapter panels shown and 6 of our FB25-3401STP36 - 36 fiber splice trays (not included). The slide out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access while bridge lances that run along the front of the unit provide easy tie down ability for fiber management entering or exiting the fiber enclosure.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and
Features
Features
- 216 splice capacity
- Convenient split-top design
- Durable powder coat finish
- Increased fiber management
- Locking master panel
Specifications
Specifications
Capacity
Splice Trays: (6) 36 Fiber Splice Trays ( - Sold Separately)
Panels: (9) LC Quad Panels (Sold Separately)
APC Single Mode Panel ()
UPC Single Mode Panel ()
PC Multimode OM1 Panel ()
PC Multimode 10G OM3/OM4 Panel ()
Dimensions
Depth: 15.94"
Height: 5.25"
Width: 17"
Physical Properties
Color: Black
Material: 0.060" Powder Coated Steel
Data Sheet & Spec Sheet
